Details

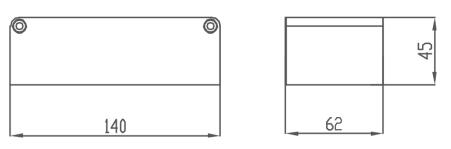

DIMENSIONS:(mm)
FEATURES
· Exclusive designed power box for indoor use only
· Specially deisgn for kitchen and bathroom cabinet use
· Class II protection against electric shock from direct and indirect contact
· SELV output
· Open circuit, short circuit, over load and over temperature protection
· No load power consumption ≥0.3W
· German socket, French Socket.Swiss Socket, England Socket, USB charger, all these can be available
STANDARDS
EN61347-1 EN61347-2-13 EN55015 EN6100-3-2 EN61000-3-3 EN61547 EN62493
CHARACTERISTICS
RATED INPUT VOLTAGE: AC220-240V 50/60Hz (power factor measured at AC230V and full load)
|
Model No. |
Rate Input voltage |
Rated Output voltage |
Rated current |
Rated load |
L×W×H |
Approval |
|
BH-2012VL-3N |
AC220-240V |
DC 12V(Driver) AC220-240V(SOCKET) |
Max.1.67(Driver) Max.16A(SOCKET) |
Max.20W(Driver) Max.4000W(SOCKET) |
140×62×45mm |
|
|
BH-2012VL-4 |
AC220-240V |
DC 12V(Driver) AC220-240V(SOCKET) |
Max.1.67A(Driver) Max.16A(SOCKET) |
Max.20W(Driver) Max.4000W(SOCKET) |
140×62×45mm |
|
|
BH-4012M |
AC220-240V |
DC 12V(Driver) AC220-240V(SOCKET) |
Max.3.33A(Driver) Max.16A(SOCKET) |
Max.40W(Driver) Max.4000W(SOCKET) |
140×62×45mm |
|
|
BH-6012M |
AC220-240V |
DC 12V(Driver) AC220-240V(SOCKET) |
Max.5A(Driver) Max.16A(SOCKET) |
Max.60W(Driver) Max.4000W(SOCKET) |
140×62×45mm |
