Mirror Touch Switch
-
-
- 2019-08-07
Details

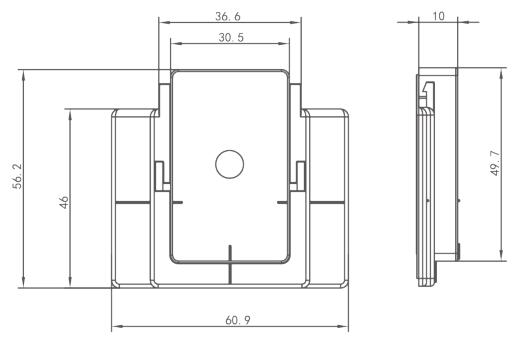

DIMENSIONS:(mm)
FEATURES
· Specially designed for mirror lamp
· Touching ON/OFF, Dimming&CCT changing
· Voltage: 12V/24V
· Power: Max.36W/72W
CHARACTERISTICS
|
Model No |
Rated Input voltage |
Rated Output voltage |
Rated current |
Rated load |
LxWxH |
Approval |
|
BHMLS-12036T-1 |
DC12V |
DC12V |
Max 3A |
Max 36W |
60.9x56.2x10mm |
|
|
BHMLS-24072T-1 |
DC24V |
DC24V |
Max 3A |
Max 72W |
60.9x56.2x10mm |
