IR Sensor Switch
-
-
- 2019-08-07
Details

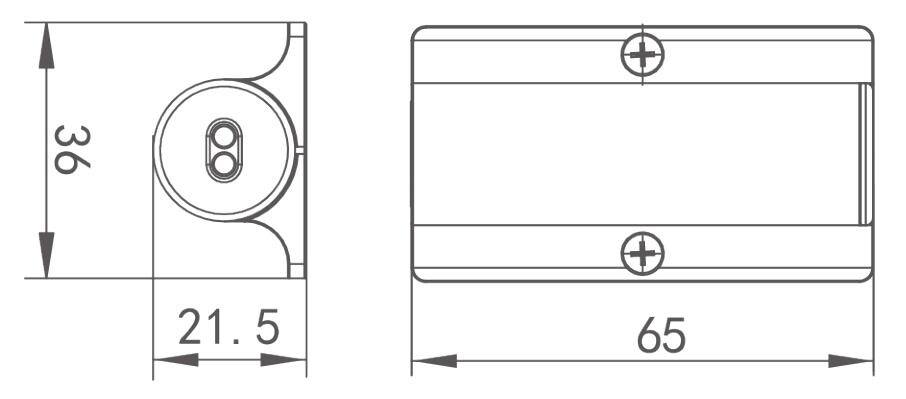

DIMENSIONS:(mm)
FEATURES
· IR sensor for LED lighting
· With 2 selectable functions before installation
· Input voltage range: 12V
· Power: Max.36W (12V)
· Detection: Max.5cm
CHARACTERISTICS
|
Model No |
Rated Input voltage |
Rated load |
Ta |
Detect range |
LxWxH |
Approval |
|
BHlRL-36A |
DC12V |
Max 36W |
-20-35℃ |
Less then 5cm is recommended |
65x36x21.5mm |
|
|
BHlRL-36B |
DC12V |
Max 36W |
-20-35℃ |
Less then 5cm is recommended |
65x36x21.5mm |
