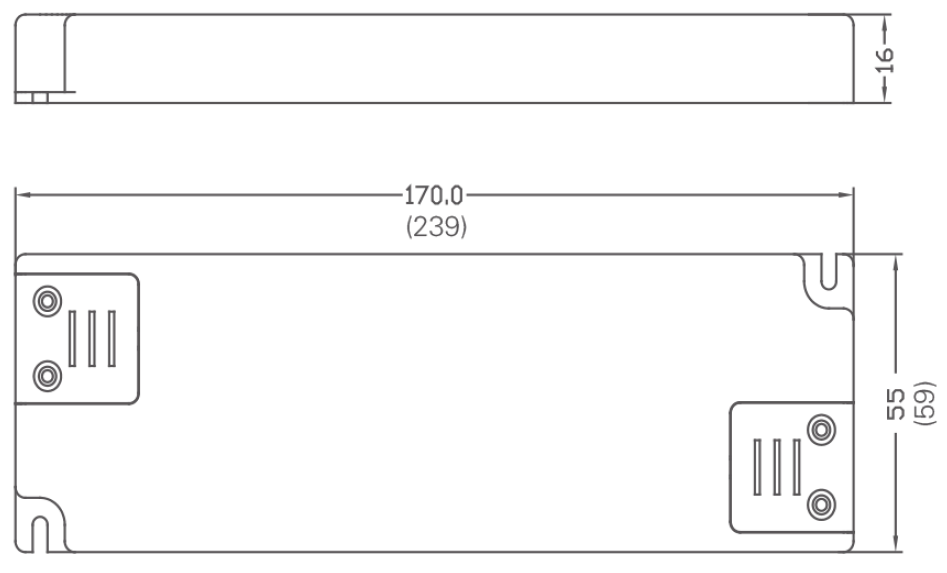

DIMENSIONS:(mm)

FEATURES

· Independent power supply for constant voltage LED lamp
· Special design screw terminal for field connection
· Class II protection against electric shock from direct and indirect contact
· SELV output
· Open circuit, short circuit, over load and over temperature protection
· Auto restart after fault conditions removal
· No load power consumption≤0.3W

STANDARDS

EN 61558-2-16:2009     EN 61558-1 :2005+A 1 :2009

CHARACTERISTICS
RATED INPUT VOLTAGE:①AC220-240V ②AC110-240V 50/60Hz (power factor measured at AC230V and full load)
